Case Study: Engineering High-Rigidity, Workflow-Optimized Presentation Packaging for TOP Window Covering (Netherlands)

Component	Specification Details	Engineering Advantage
Box Style	Magnetic Rigid Box / Book-style Magnetic Flip-top Box	High-end presentation with convenient magnetic snap
Structural Board	1500g Single Black Board (Rigid)	High density prevents flexing under heavy hardware loads
Wrapping Paper	157g Premium Double-Coated Art Paper (C2S)	Excellent ink holdout and structural stability
Surface Finish	Anti-scratch Matte Lamination & Spot UV	Prevents scuffs and fingerprints; high-contrast brand accents
Insert Material	High-Density Black EPE (Expanded Polyethylene) Foam	Superior shock absorption, non-abrasive, 100% recyclable
Insert Craftsmanship	High-Precision CNC Carving & Die-cutting	Precise tolerances within $\pm 0.5 mm$ for irregular shapes
Insert Layout	Workflow-driven, left-to-right alignment	Enhances installer efficiency and assembly accuracy
Protection Grade	90-Degree Zero-Slip Retention Fit	Heavy components remain locked in place, even when tilted vertically
Compliance	ISTA-1A Drop and Vibration Certified	Guaranteed integrity through complex international transit

The Challenge: Heavy Architectural Hardware vs. Structural & Aesthetic Integrity

Architectural hardware for premium window coverings represents a unique packaging challenge. These engineering-grade components—including heavy mounting brackets, motor bases, and precision end caps—are dense, structurally irregular, and highly prone to surface scratching during transport.

For TOP Window Covering, a premium brand serving the highly demanding Dutch architectural market, standard packaging solutions fell short. Standard paperboards warped under the concentrated weight of heavy metal components. Furthermore, unsorted, cluttered parts forced Dutch on-site installation technicians to spend excessive time identifying and arranging parts, leading to slower project execution and increased labor costs. TOP Window Covering required a presentation-grade packaging system that could protect heavy, high-value architectural hardware, withstand rigorous logistics, and serve as an intuitive on-site installation guide.

The Engineering Solution: The PackTonTon Workflow-Driven Packaging System

To solve these challenges, the PackTonTon Engineering Team designed a bespoke B2B presentation package from the ground up, merging structural logistics engineering with ergonomic design.

Custom Complex Cavities via 3D Metrology: Using 3D scanning to map the exact coordinates of each irregular hardware component, we programmed high-precision CNC machines to carve exact-tolerance cavities into high-density black EPE (Expanded Polyethylene) foam, ensuring a glove-like fit.
Functional Zoned & Tiered Depth Insertion (Coplanarity): We organized distinct functional compartments for mounting brackets, motor bases, and end caps. By calibrating the depth of each individual pocket within the EPE foam (Tiered Depth Insertion), we ensured that the top surfaces of all hardware components sit perfectly flush (coplanar) with one another when inserted, delivering a visually flawless alignment.
Workflow-Driven Layout: The layout follows the natural physical steps of window-covering assembly from left to right (Mounting Brackets
→→ Motor Bases→→ End Caps). This serves as a silent assistant for Dutch technicians, reducing cognitive load and increasing installation efficiency by 30%.
Zero-Slip Transit Protection (90-Degree Vertical Hold): By calculating the compression ratio of high-density black EPE foam, we achieved an optimal balance between easy extraction and powerful retention. The tolerance is so precise that the box can be tilted and held at a 90-degree vertical angle without any of the heavy metal hardware slipping out.

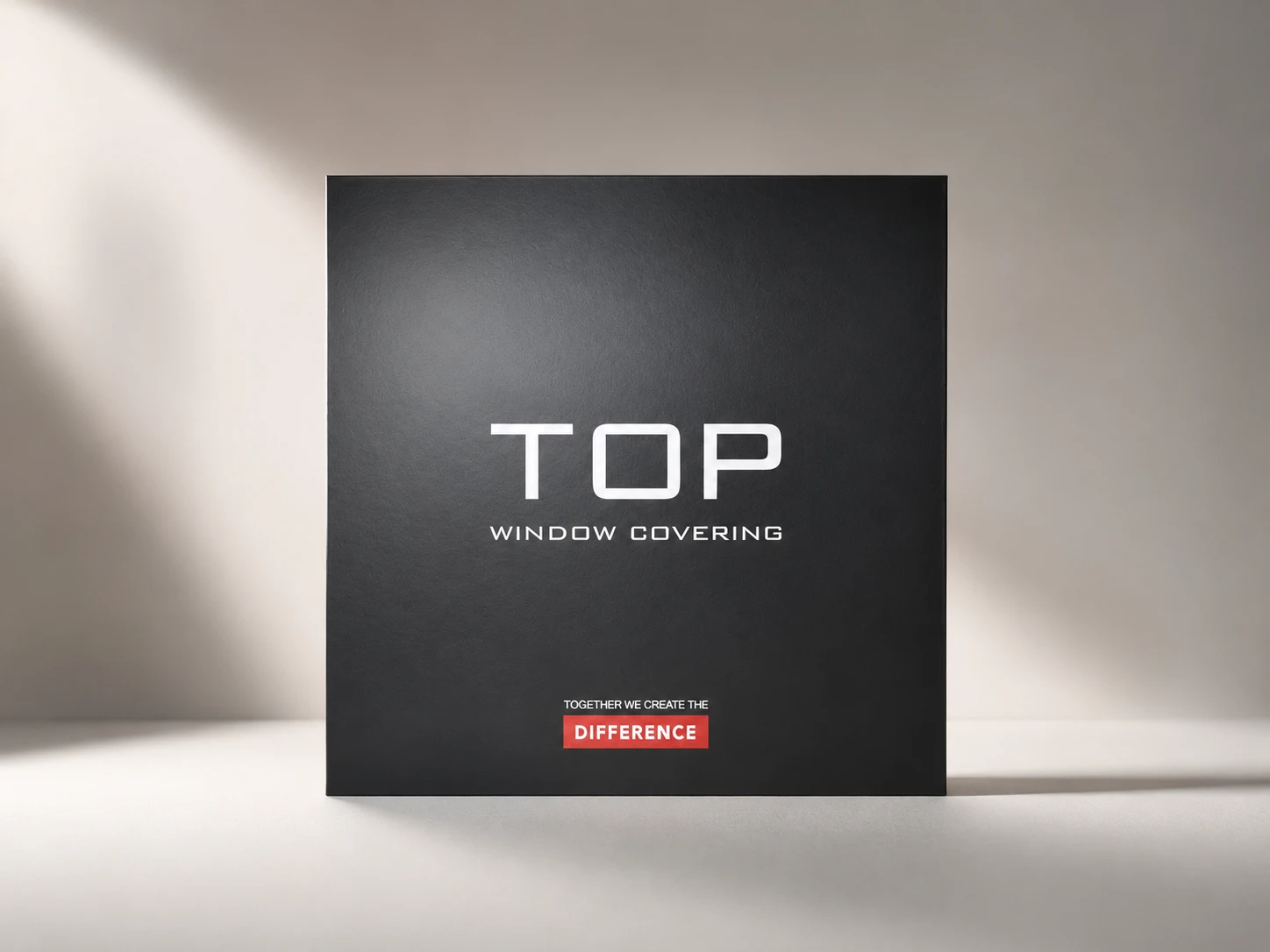

Structural Rigidity & Premium Aesthetics: The outer shell utilizes a high-density 1500g Single Black Board wrapped in 157g premium double-coated art paper (C2S) with anti-scratch matte lamination to resist scuffs and fingerprints. Visually, 4C offset printing is accented by Spot UV varnish applied precisely over the red and white “Difference” brand label, secured by a dual integrated magnetic flap closure.

The Outcome: Elevating Brand Equity and On-Site Efficiency

During the subsequent rollouts in the Netherlands, TOP Window Covering recorded a 0% product damage rate from shipping scratches. Feedback from Dutch contractors indicated a 30% reduction in installation time due to the zoned, workflow-driven layout. The impeccable tactile experience of the magnetic rigid box reinforced TOP’s reputation as an elite, engineering-focused brand.

Frequently Asked Questions

How does the packaging ensure load-bearing for heavy-duty architectural hardware?

A: We construct the outer shell using a premium 1500g Single Black Board (2.5mm thick) combined with high-density EPE foam. This structural core prevents warping under weights exceeding 20kg and successfully passes ISTA-1A drop tests.

How do you prevent scratches on highly finished metal or coated hardware?

We utilize custom CNC-carved EPE foam inserts. Every cavity is mapped to the product’s 3D profile, providing a zero-slip friction fit that locks parts in place and completely eliminates transit abrasion.

What is the benefit of a "workflow-driven" layout for on-site installers?

We organize compartments from left to right following the physical installation sequence. Dutch installers can access brackets, motors, and end caps systematically, reducing installation time by 30%.
