Engineering the Reveal: U.S. Tobacco Double-Door Lift Box Case Study

Component	Technical Specification	Strategic Brand Value
Outer Structure	Double-door lift rigid box	Creates a staged, collectible presentation for a 12-bottle set.
Outer Facing	157g double-coated paper mounted to 2mm rigid greyboard	Supports a structured exterior and connected six-face artwork.
Outer Processes	4C printing, scratch-resistant gloss lamination, die-cutting, hand-applied paper wrapping	Builds color depth, surface resilience objectives, and hand-finished detail.
Outer Ribbon Detail	White ribbon, specified as 3/4 with 25mm exposed length	Adds a controlled tactile and visual accent to the outer presentation.
Tray Face	275g bright gold card	Creates a high-contrast, premium interior reveal.
Tray Base	1800g double-greyboard-backed base	Provides structural support for the lifting presentation tray.
Bottle Cushioning	White pearl cotton faced with gold card	Cushions glass bottles while maintaining the gold interior visual system.
Lift Ribbons	Three white single-sided ribbons, 15 x 510mm each	Supports coordinated tray-lift motion and controlled bottle access.
Capacity	12 glass bottle positions	Organizes the collection into a defined presentation layout.
Tray Processes	Greyboard-backed base and die-cut construction	Supports bottle positioning and lift-tray assembly.

Challenge: Turning Complex Presentation into a Controlled Reveal

This U.S. premium tobacco packaging project required more than a rigid outer box. The double-door structure needed to present twelve glass bottles as a coordinated collection: the doors open evenly, the internal tray rises gradually and steadily, and each bottle remains visually ordered throughout the reveal.

The engineering challenge began with material diversity. The construction combines printed and hand-wrapped paper, rigid greyboard components, bright gold card, white pearl cotton cushioning, multiple ribbon systems, and a lift mechanism. Each material introduces a different tolerance for folding, adhesion, die-cutting, and repeated handling. The objective was to make this complexity feel effortless to the user.

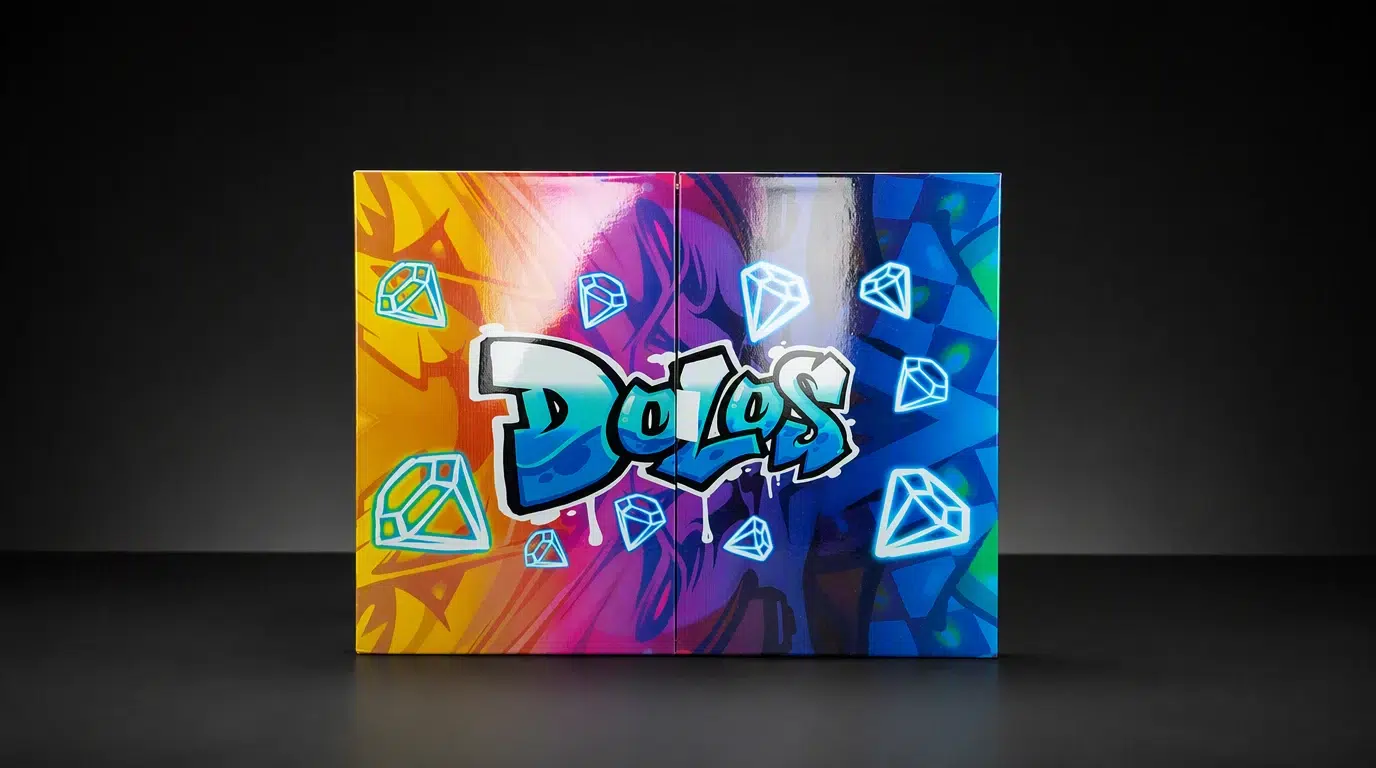

Visual continuity was equally important. The six connected outer faces needed to carry integrated artwork and typography without visible displacement or color variation across the doors, panels, wrapped edges, or connected seams. The finished box also needed to remain square, smooth, and stable, with clean corners, controlled edge wrapping, and a confident opening motion. Internally, the lifting tray had to support twelve glass bottles while the three 15 x 510mm white single-sided ribbons remained aligned, durable in use, and free from snagging.

PackTonTon Engineering Solution: Coordinating Motion, Materials, and Visual Continuity

The PackTonTon Engineering Team built the outer structure with 157g double-coated paper mounted to 2mm rigid greyboard. The exterior uses 4C printing, scratch-resistant gloss lamination, die-cutting, and hand-applied paper wrapping. A white ribbon specified as 3/4 with a 25mm exposed length provides a visible tactile detail on the outer presentation.

For the interior, the tray combines 275g bright gold card with an 1800g double-greyboard-backed base. White pearl cotton is faced with gold card to provide cushioned contact for the bottles while preserving the bright gold visual field. The 12 bottle positions are developed through die-cut construction, with the base backed in greyboard for structural support.
The double-door lift action is treated as a functional presentation sequence, not simply a decorative mechanism. The three 15 x 510mm white single-sided ribbons are integrated as part of the lift system. Engineering attention is directed to ribbon adhesion, alignment, travel path, and repeated opening behavior so that the tray can rise smoothly and the bottles remain stable in their allocated positions.
For the exterior artwork, the full connected layout is reviewed as one visual system before production. Color references, panel alignment, door symmetry, hand-wrapped edges, and the transition across all connected faces are quality-control priorities. This approach supports a consistent presentation across a complex, multi-material structure.

Outcome: A Collectible Presentation System for Twelve Bottles

The resulting concept positions the package as a controlled two-door reveal for a twelve-bottle collection. The bright gold interior, white cushioning elements, and coordinated ribbon lift create contrast against the printed exterior, while the rigid structural base supports a premium, hand-finished presentation.

Presentation value: Double doors and lift motion turn product access into a deliberate reveal sequence.
Product protection focus: Die-cut, cushioned bottle positions are engineered to keep twelve glass bottles organized during handling and transport.
Visual discipline: Connected artwork, symmetrical doors, rounded wrapped edges, and stable color references are treated as batch-quality priorities.
Operational confidence: The structural, ribbon, and tray interfaces are engineering targets to be confirmed through approved samples and production validation.

Frequently Asked Questions

How can six connected box faces maintain continuous artwork and typography?

The complete outer layout should be reviewed as one connected artwork system before production. Panel transitions, door symmetry, color references, and wrapped-edge alignment are checked against approved production references to control visual continuity.

How is the tray engineered to lift twelve glass bottles steadily?

The lift system uses three white single-sided ribbons, each specified at 15 x 510mm, together with a structurally backed tray. Ribbon adhesion, alignment, tension balance, and lift travel should be validated on approved samples before production.

How are the glass bottles protected inside the lift tray?

The tray combines die-cut construction, white pearl cotton cushioning faced with gold card, and an 1800g double-greyboard-backed base. Final cavity fit and bottle retention should be confirmed using approved bottle samples.

How do you manage batch consistency for a multi-material hand-finished box?

Production comparison uses approved references for 4C color, connected artwork, gloss surface appearance, ribbon placement, gold-card tray finishing, door alignment, and wrapped-edge quality. These are treated as batch-quality control points.
