| Category | Technical Specification | Brand Value & ROI |
|---|---|---|
| Structure | Magnetic flip-top rigid box | Defines a controlled opening and closing presentation; final closure behavior requires approved samples and production validation. |
| Outer Wrap | 157g double-coated paper | Provides the specified printable outer wrap for surface finishing. |
| Core Board | 1200g double greyboard | Provides the specified rigid board for the book-style construction. |
| Structural Forming | V-groove formation; groove-depth tolerance: ±0.1mm | Directs review toward controlled fold formation, corner squareness, and panel geometry. |
| Surface Finish | 4C printing, scratch-resistant matte lamination, and gold foil stamping | Creates the specified printed, matte, and metallic surface system. |
| Color-Control Focus | Full-coverage light-base-color 4C special-color printing; Delta E≤2 | Provides the supplied batch color-difference requirement for production review. |
| Foil Focus | Fine-line snowflake pattern over scratch-resistant matte lamination | Directs review toward stroke continuity, edge definition, and batch consistency. |
| Internal Insert | 30mm white EVA: 5mm base pad plus 25mm die-cut layer | Provides the specified layered EVA insert construction. |
| Insert Process | Laser engraving and 300g white card facing | Directs review toward cavity conversion, melt-edge condition, curved-corner facing, and layer integrity. |
| Cavity-Control Focus | Irregular EVA cavity tolerance: ±0.2mm | Provides the supplied cavity-conversion parameter for production review. |
| Magnetic Alignment Focus | Pre-embedded position deviation of 0.5mm can affect closure feel and panel flatness | Directs manual-assembly review toward position and alignment control. |
| Validation Path | Approved samples and production validation | Confirms final structural, visual, insert, and closure performance. |

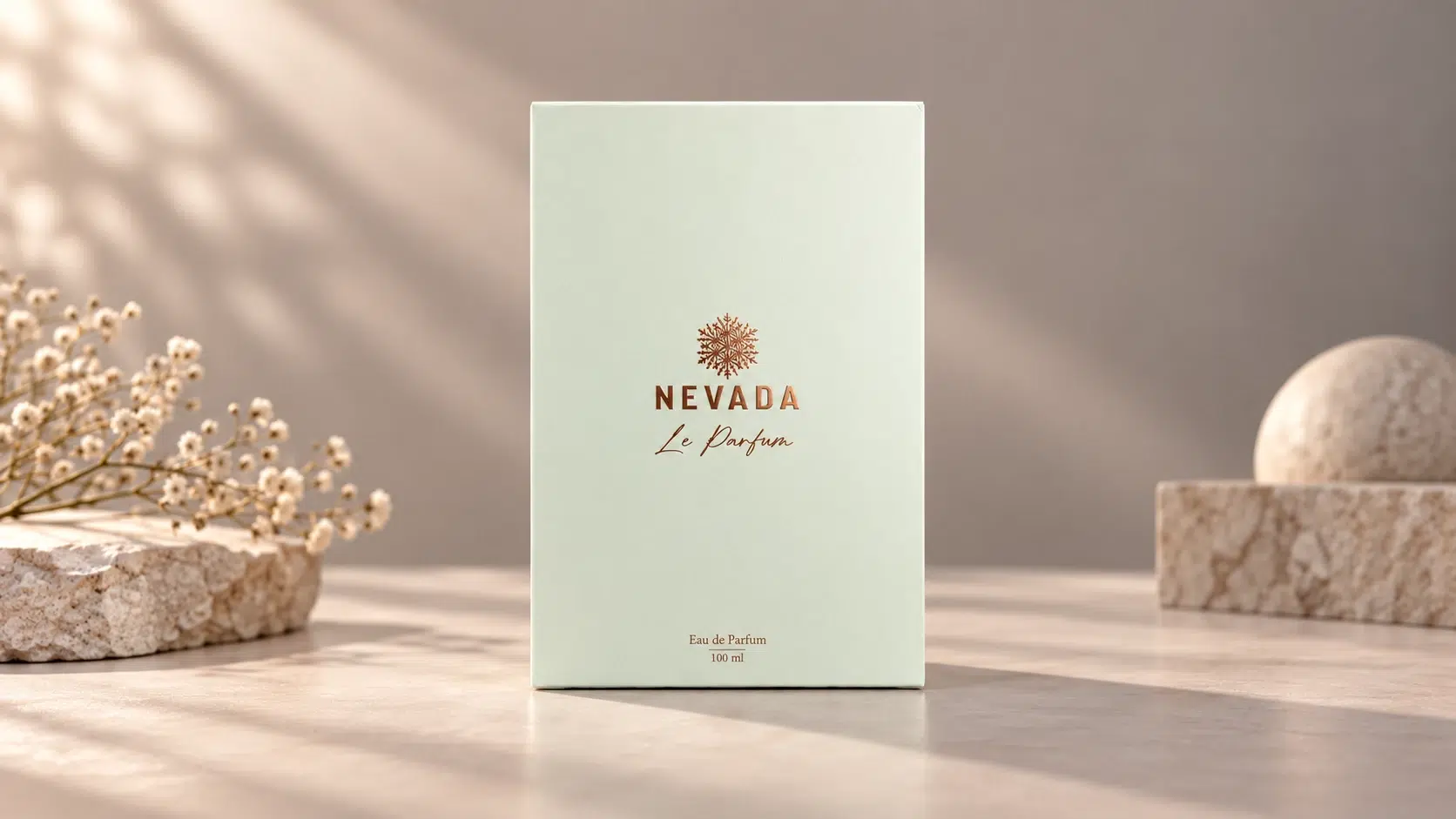

For this anonymous U.S. cosmetics packaging project, the brief required a magnetic flip-top rigid box that combines high-fidelity printed surfaces, scratch-resistant matte lamination, and gold foil details with a layered white EVA insert. The outer construction uses 157g double-coated paper wrapped over 1200g double greyboard. The interior uses a 30mm white EVA system consisting of a 5mm base pad and 25mm die-cut layer, laser engraved and faced with 300g white card.
The first challenge was structural formation. The 1200g thick greyboard book-style construction requires V-groove forming with a specified groove-depth tolerance of ±0.1mm. Potential risks include edge bursting, corners losing squareness, and warpage caused by stress release after the lid panel is paper-wrapped.
The second challenge was gold foil over scratch-resistant matte lamination. The lamination interface can create an adhesion-control risk, while a snowflake fine-line foil pattern can show broken strokes or foil spillover. The available process window for temperature and pressure requires control for batch consistency. Final foil adhesion and visual behavior are to be confirmed through approved samples and production validation.
The third challenge was full-coverage light-base-color 4C special-color printing. This color direction is sensitive to variation, and matte lamination can introduce color-shift risk. The specified batch color-difference requirement is Delta E≤2. Final color appearance remains subject to approved samples and production validation.
The fourth challenge was the layered 30mm EVA insert. The 25mm die-cut layer uses laser engraving for irregular cavities, with a supplied cavity tolerance of ±0.2mm. Potential risks include residual melt-edge marks on cavity walls, bubbles at curved card-facing corners, or layer separation after the 300g white card is mounted.
The fifth challenge was magnetic alignment. A supplied 0.5mm deviation in pre-embedded magnet position can affect closure feel and panel flatness. The project therefore requires close alignment review during manual assembly, while final closure behavior is to be confirmed through approved samples and production validation.
The PackTonTon Engineering Team specifies the outer box with 157g double-coated paper wrapped over 1200g double greyboard. The exterior process sequence combines 4C printing, scratch-resistant matte lamination, and gold foil stamping. Structural review begins with V-groove formation, using the specified ±0.1mm groove-depth requirement as a controlled engineering parameter. Board preparation, wrapping sequence, corner formation, and panel flatness should be reviewed against approved references to manage edge bursting, corner squareness, and possible warpage.
The project establishes a controlled engineering direction for an anonymous U.S. cosmetics magnetic flip-top box.
The construction combines 157g double-coated paper, 1200g double greyboard, 4C printing, scratch-resistant matte lamination, and gold foil stamping. The internal presentation uses a 30mm layered white EVA insert comprising a 5mm base pad and 25mm die-cut layer, laser engraved and faced with 300g white card.
The defined control points are V-groove formation, light-base-color printing consistency, matte-film and gold-foil coordination, EVA cavity conversion and card facing, and magnetic alignment during manual assembly. Final structural, surface, color, foil, insert, and closure performance are to be confirmed through approved samples and production validation.
